SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance

Marchio:	YINGDA
MOQ:	10 pezzi
prezzo:	3.6usd-19.9usd
Tempo di consegna:	5-7 giorni lavorativi
Condizioni di pagamento:	D/A,D/P,T/T

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

ISO,CE

Tipo:

Trucchieri in fibra ottica

Connettore:

Fattore di forma:

SFP+

Rete:

Lan senza fili, POE

Utilizzo:

FTTH, reti di archiviazione ad alta velocità, tubi di dati

Velocità dati:

1.25 Gbps

Lunghezza d'onda:

1310

Distanza di trasmissione:

5 km

Evidenziare:

SFP 1.25G Fiber Optic Transceiver

DDM Optical Module Fiber Optic Transceiver

Descrizione del prodotto

SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

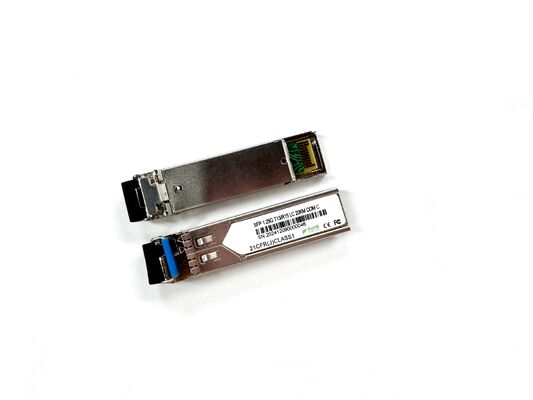

SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance 0

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	0		+70	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Supply Current	Icc			300	mA
Data Rate			1.25		Gbps

Optical and Electrical Characteristics

(FP and PIN, 1310nm, 5km Reach) Table 3 - Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1260	1310	1360	nm
Spectral Width (RMS)			∆λ			9	nm
Average Output Power			Pout	-9		-3	dBm	1
Extinction Ratio			ER	9			dB
Optical Rise/Fall Time (20%~80%)			tr/tf			0.16	ns
Data Input Swing Differential			VIN	400		1800	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1530	1550	1570	nm
Receiver Sensitivity						-24	dBm	3
Receiver Overload				0			dBm	3
LOS De-Assert			LOSD			-28	dBm
LOS Assert			LOSA	-30			dBm
LOS Hysteresis				1		4	dB
Data Output Swing Differential			Vout	400		1800	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance 1 Mechanical Dimensions

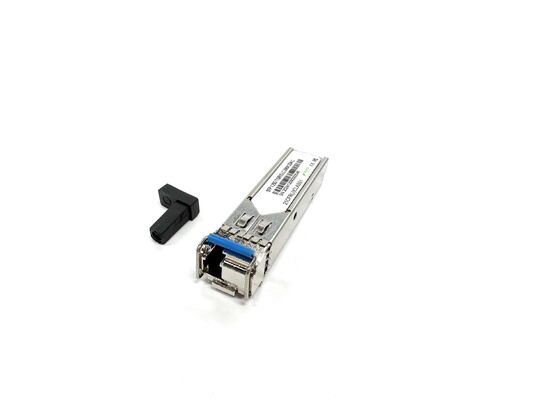

SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance 2

Wide Compatibility

Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.

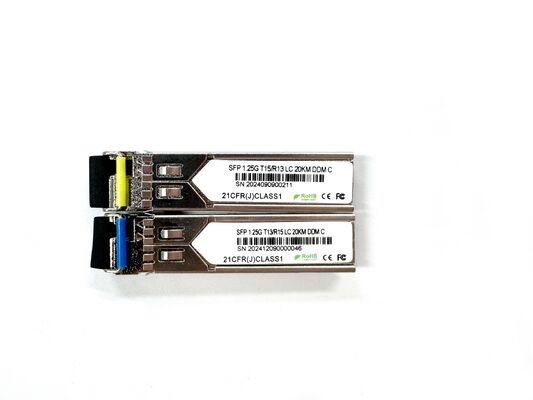

SFP 1.25G Fiber Optic Transceiver 5KM TX1310 RX1550 Dual LC DDM Optical Module Short Distance 3

Applications

GBE,SDH STM-8 and SONET OC-24 system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Ordering information

Part Number	Product Description
YH-S1213-L3305C	1310nm, 1.25Gbps, LC,5km, 0°C~+70°C
YH-S1213-L3305T	1310nm, 1.25Gbps, LC,5km, -40°C~+85°C,

1. Are you factory or trading company?

Shenzhen YINGDA Photonic Co. Ltd is a specialized manufacturer of fiber optic telecon products, such as fiber optic splitter box,fiber termination box, PLC Splitter,patch cord, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, but we need to charge for samples, we will return sample fee in the later order.

3. What is your MOQ and the lead time?

We don’t have MOQ, 1 samples is available. Normally lead time is 1-3 working days for samples and 3-5 days for mass.

4. What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5. Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.
