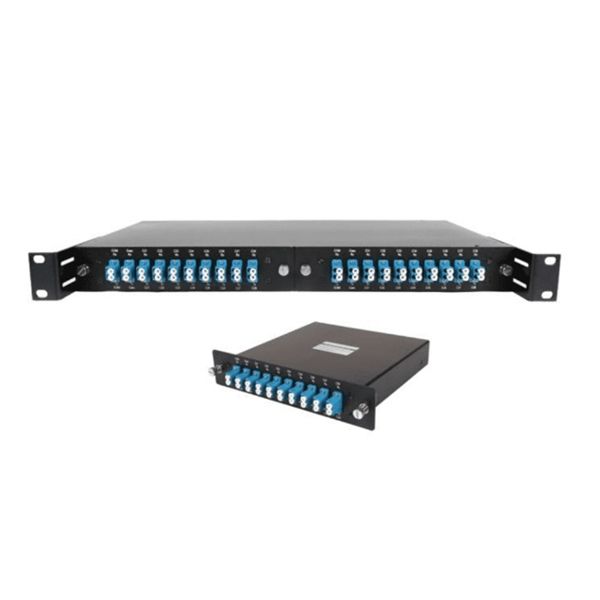

19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission

Name: 19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 8CH CWDM 1X8
Price: 2.10 USD
Availability: InStock

Marchio:	Yingda
Numero di modello:	8CH CWDM 1X8
MOQ:	100pcs
prezzo:	1.1USD-4.58USD
Tempo di consegna:	7days
Condizioni di pagamento:	T/T,Western Union,MoneyGram

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Place of Origin:

china

Certificazione:

ISO

reflection:

1310/1490nm

transmition:

1550nm

connector type:

LC SC FC

fiber type:

SMF-28e

package:

blister box, 1pc/ box

Product name:

Fwdm Dwdm Cwdm

Network:

Wired LAN, 4g, 3G

Fiber count:

4/8/16/32

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Evidenziare:

FTTH Transmission WDM DWDM

19 Inch Rack WDM DWDM

WDM DWDM Modules Cassettes

Descrizione del prodotto

Description

CWDM is a low-cost WDM transmission technology used for metropolitan area network access. It uses the huge bandwidth of the low-loss area of single mode fiber to couple light of different wavelengths into one optical fiber for transmission.

Mux CWDM Module Features

Low Insertion loss and low PDL

High channel Isolation

Good channel-to-channel uniformit

High Reliability and Stability

Telcordia Compliant

RoHS Compliant

WDM Module Application

ü Broadband networks

ü PON Networks

ü CATV system

ü CWDM system

CWDM Mux Demux Module Specification

Parameters		Unit	4CH	8CH	12CH	18CH
Operating Wavelength		nm	1260~1620
Channel Space		nm	20
Center Wavelength		nm	ITU,ITU+1
Center Wavelength y Accuracy		nm	±0.8
Pass band @-0.5dB		nm	±6.5
Port Insertion Loss		dB	≤1.3	≤2.6	≤3.6	≤3.8
Link Loss		dB	≤2.1	≤3.3	≤4.1	≤4.3
Isolation	Adjacent	dB	≥30
	Non-adjacent	dB	≥40
Ripple		dB	≤0.5
Polarization Dependent Loss		dB	≤0.2
Return Loss		dB	≥40
Directivity		dB	≥50
Power		mw	≤300
Fiber Type		/	G657.A1(0.9mm Tube, 2.0mm Tube)
Fiber Length		m	0.5+/-0.05&Customized
Connector		/	LC/UPC&Customized
Operating Temperature		℃	-20~75
Storage Temperature		℃	-40~85
Housing		mm	15512929,21519042,48425044

NOTE:

All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

All the data are without connectors, insertion loss of one pair conector is less than 0.3dB.

Mux Demux Module Structure Diagram (Refer to the below)

Mechanical Dimensions (Refer to the below)

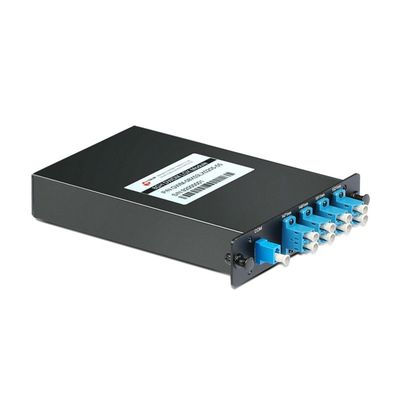

19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission 1

CWDM Mux Demux Module Dimension:215*190*42mm

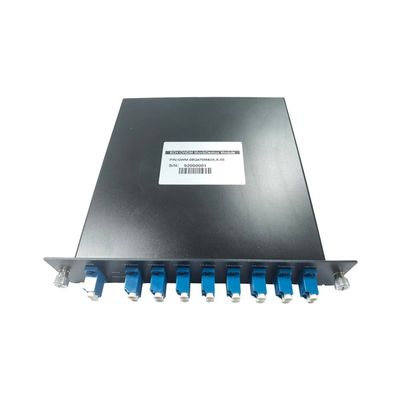

19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission 2

CWDM Mux Demux Rack Dimension:484*250*44mm

YINGDA Production line:

19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission 3

19 Inch Rack Fixed Optical Fiber WDM DWDM Modules Cassettes X3 Pluggable For FTTH Transmission 5

YINGDA More FTTH Products

Fiber splitter box Fiber PLC splitter Fiber adapter Fiber fast connector

Fiber Cable Patch Cord&Pigtail MPO Cable AOC Cable
